A cursory glance at shop floors is all it takes to see human-robot collaboration has gone mainstream in manufacturing. However, a second glance reveals that this is more “to each his own” than “we're in this together.” Heavy-duty robots operate alongside their human coworkers without safety fencing, but direct interaction is a no-go. Safety precautions dictate that the robot freezes as soon as a human sets foot in a sizable surrounding safety zone.
Safe, effective and direct – a better way of working together

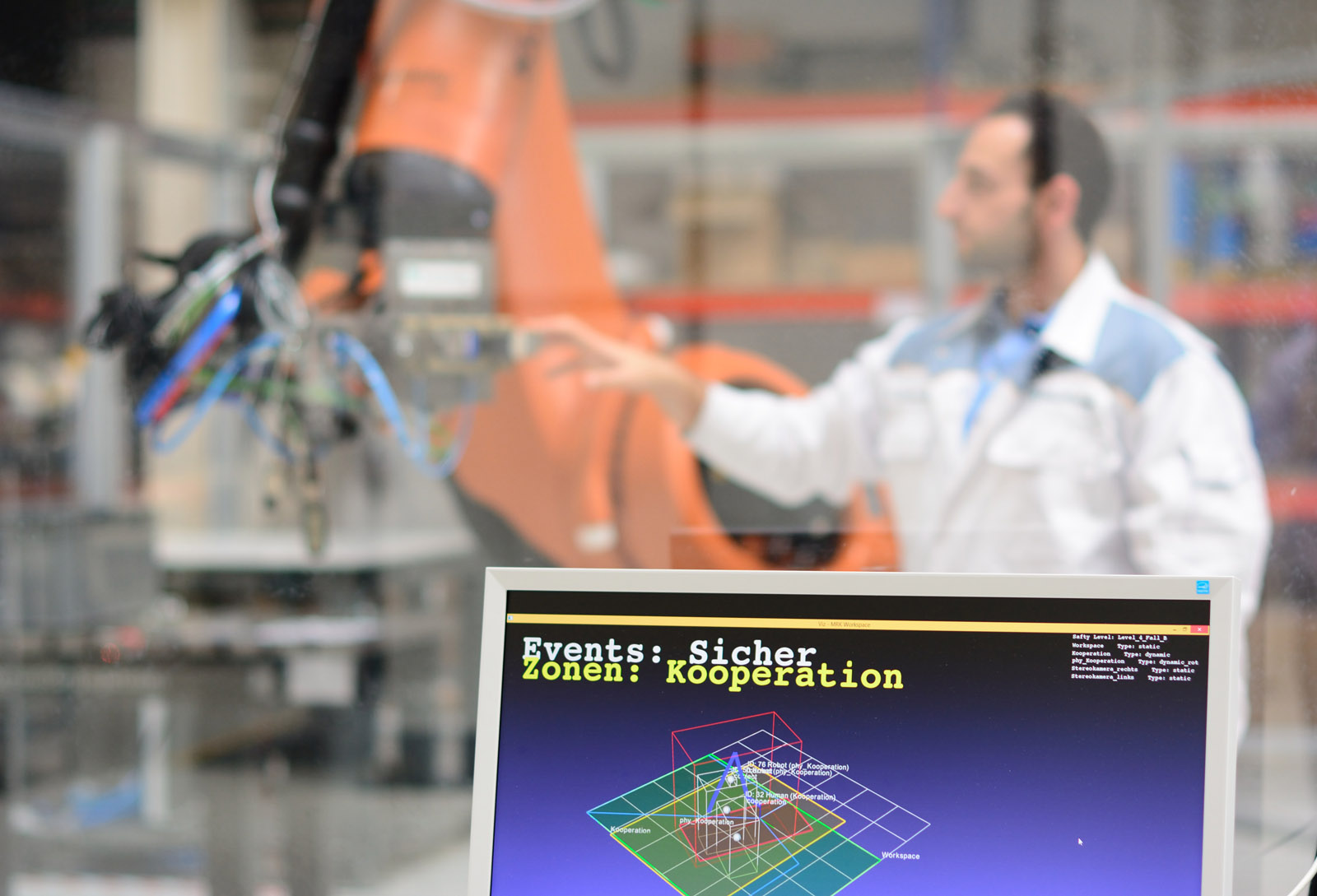

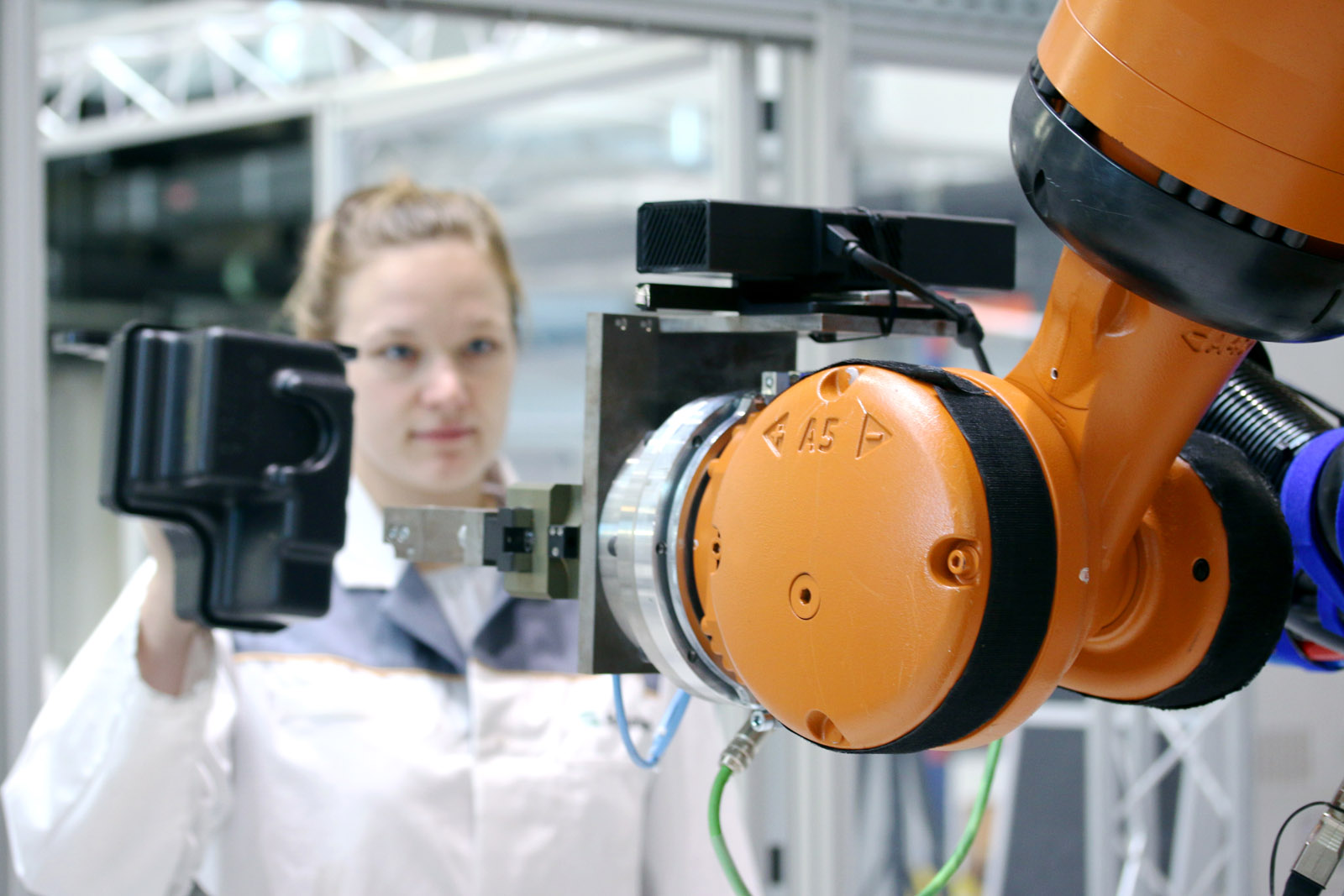

The Fraunhofer Institute for Machine Tools and Forming Technology IWU has come up with an unprecedented technology to make human-machine teamwork more efficient, benefiting the entire manufacturing workflow. “We have added effective, secure and flexible interaction to legacy technology. This is the first time humans can communicate and collaborate directly with heavy-duty robots based on hand gesture in the industry,” says Dr.-Ing. Mohamad Bdiwi, head of department for robotics at Fraunhofer IWU. This collaboration goes something like this on the shop floor: The machine recognizes human gestures, faces and postures when a person enters the robot’s work zone. This data serves to make the teamwork safe and to control the robot. The human simply gestures, using hands and arms to instruct the mechanized coworker to perform a task. The robot is able to interpret even complex movements. “Our technology brings gesture control to industrial applications. To date, it has been used mainly in gaming applications, for example, for consoles,” adds Bdiwi. The robot does not only track hands; it also scans faces. For example, if the human glances sideways or rearward to talk to another coworker, the machine knows to ignore gestures meant for others. Human and robot can work together directly and even pass parts and tools back and forth. The robot ‘sees’ when a hand is too close to the worker's face, and waits for it to be extended out of the danger zone before handing the object over. This human-robot interaction comes courtesy of smart algorithms and 3D cameras that lend the robot the power of sight.
The algorithms are ready for action. Fraunhofer IWU researchers are going to present their innovation at the Hannover Messe preview on January 24, 2019. Visitors to the Hannover Messe can see a gesture-controlled, interactive demo application at the Hannover Messe on April 1 through 5, 2019, at booth C24 in hall 17.
Fraunhofer-Gesellschaft
