The continuous development of smartphones and other electronic devices can be summed up as “smaller, faster, more powerful.” At the core of these devices are microchips that also need to become smaller and better as part of this development. Good progress has been made in this area in the past, but many manufacturing technologies are now reaching their limits.
Only solution in the world
The only solution in the world that has shifted the existing limits stems from an innovative piece of technology: the electron multi-beam mask writer, developed by Vienna-based IMS Nanofabrication GmbH. The key element in this device comes from the Fraunhofer Institute for Silicon Technology ISIT. “Previously, it was only possible to achieve process sizes of just under ten nanometers on the chips — an atom is 0.1 nanometers — but the new manufacturing method makes process sizes of seven nanometers and less a possibility,” says Martin Witt from Fraunhofer ISIT. This is unrivaled around the world, meaning the electron multi-beam mask writer is currently the only technology that enables further miniaturization of the chips. The fact that “this technology enabled IMS Nanofabrication GmbH to achieve its market-leading position” was also praised by the jury for the 2021 Joseph von Fraunhofer Prize, who gave the award to Michael Kampmann and Martin Witt from Fraunhofer ISIT and Dr. Jacqueline Atanelov from IMS GmbH.
In conventional chip production, a wafer of the semiconductor material silicon is coated evenly with photoresist, which is hardened by exposing it to targeted light. The areas that are not hardened are removed and the silicon is processed at the exposed areas. The hardened part of the photoresist is then also removed and the process starts all over again. In this way, the chip is created layer by layer — for complex chips, up to 70 light exposure stages are necessary. To ensure the light is targeted to where the photoresist needs to be hardened while leaving the other areas in the dark, various masks are used. These are produced in a similar way to the chips, but in this case an electron beam is used to harden the photoresist.

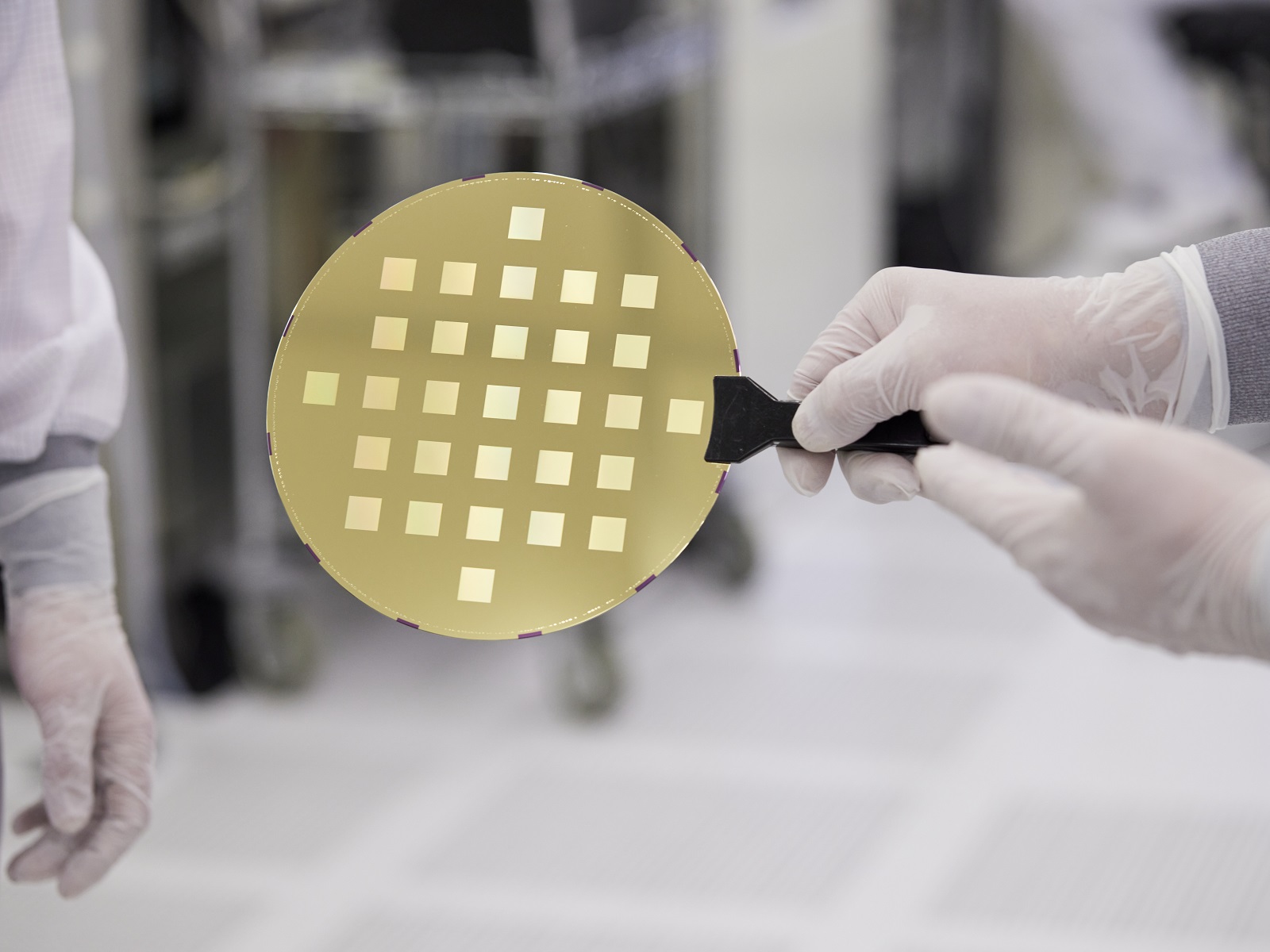

What is the key feature of this new method? “Instead of writing the mask structures on the electron-sensitive photoresist with a single beam, we use 512 times 512 beams, so more than 262,000 beams,” explains Kampmann. This is made possible by a micro-electromechanical system (MEMS) switching element from Fraunhofer ISIT, which essentially forms the core of the new multi-beam mask writer. In simple terms, this microsystem switching element is like a membrane with more than 262,000 openings that allow the electron beams through. But unlike jets of water from a shower head, these beams do not run in parallel. Instead, they can be individually controlled and redirected by special control electrodes.
Unrivaled
“The electron multi-beam mask writer allows us to create complex structures in high quality and resolution in just a few hours,” adds Atanelov. There is currently no technology to rival the innovative electron multi-beam mask writer. As a result, there is significant demand in the market and the devices are bringing in an annual revenue of $400 million for IMS. The impact can be seen at Fraunhofer ISIT as well: Industry revenue is now well in excess of one million euros a year. This prizewinning technology is not only enabling further miniaturization to be achieved, but is also bringing about outstanding commercial success.
